Description

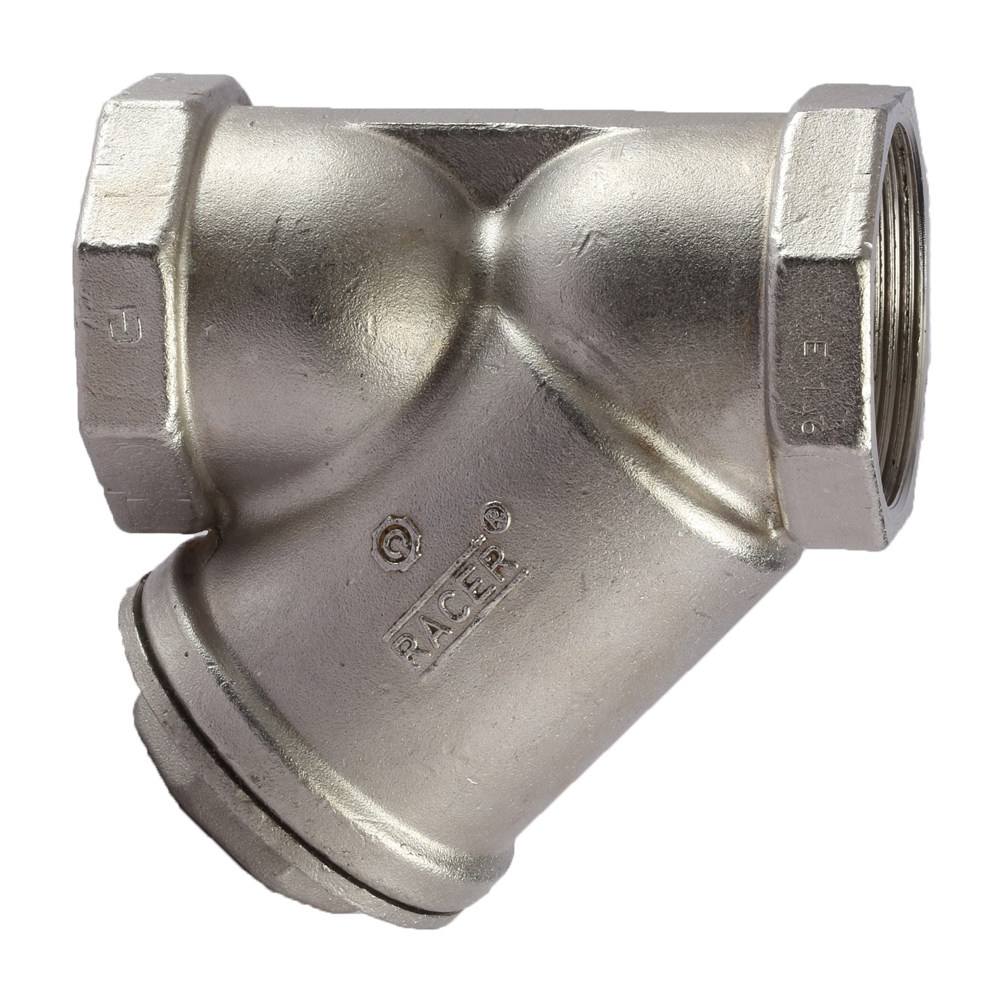

(Y Strainer Screw End)
| “Y” STRAINER S/E | ||||
|---|---|---|---|---|
| Size | FF | ØB | THRDS.(BSP\NPT) | |
| Inch | M.M. | |||
| 1/2″ | 15 | 58 | 13 | 1/2″ |
| 3/4″ | 20 | 73 | 19 | 3/4″ |
| 1″ | 25 | 90 | 25 | 1″ |
| 1.1/4″ | 32 | 92 | 32 | 1.1/4″ |
| 1.1/2″ | 40 | 111 | 38 | 1.1/2″ |
| 2″ | 50 | 123 | 50 | 2″ |
| PRIMARY SERVICE RATING & TEST PRESSURE | ||
|---|---|---|
| Class | Hydro Test Pressure | Max. Temp |
| Body | ||
| 150 | 425 PSI | 180°C |
| S. N. | Parts Name | Material | Qty |
|---|---|---|---|
| 01 | Body | ASTM A351 Gr. CF8/CF8M | 1 |
| 02 | Screen | M.S./S.S. 202/304/316 | 1 |
| 03 | Cover | ASTM A 351 Gr. CF8/CF8M | 1 |
Application
Note:
(1) All Dimension are in mm
(2) Tolerance ± 3 mm
