Description

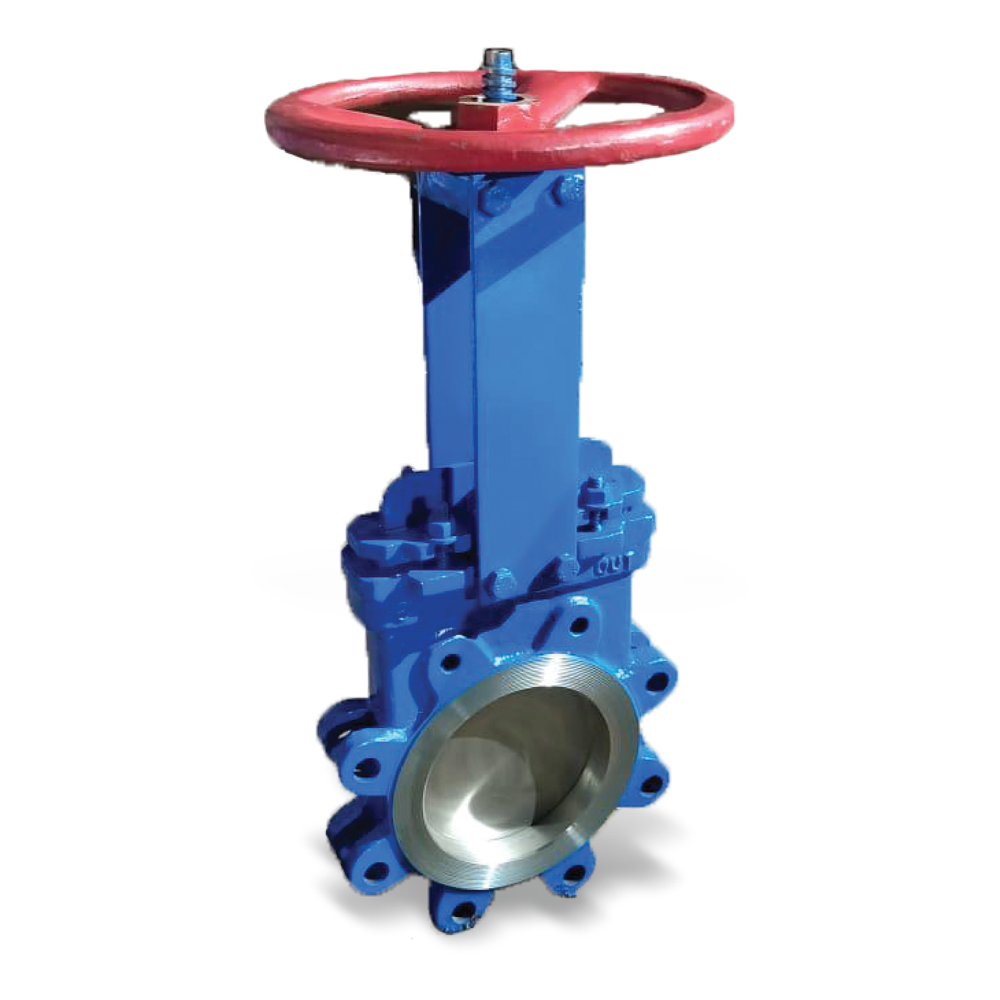

(Knife edge gate valve)
| KNIFE EDGE GATE VALVE | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Size NB | A | B | C | D | E | F | H | I | PCD |
| 2″ 50 | 95 | 150 | 60 | 50 | 12 | 50 | 14 | 200 | 121 |
| 2.5″ 65 | 110 | 170 | 70 | 50 | 12 | 65 | 14 | 200 | 140 |
| 3″ 80 | 120 | 180 | 80 | 50 | 12 | 75 | 14 | 200 | 153 |
| 4″ 100 | 155 | 225 | 115 | 56 | 12 | 100 | 18 | 205 | 191 |
| 5″ 125 | 185 | 245 | 135 | 56 | 15 | 125 | 18 | 205 | 216 |
| 6″ 150 | 200 | 275 | 160 | 60 | 15 | 150 | 18 | 260 | 243 |
| 8″ 200 | 260 | 340 | 215 | 70 | 16 | 200 | 18 | 320 | 299 |
| 10″ 250 | 330 | 406 | 260 | 70 | 16 | 250 | 20 | 320 | 362 |
| 12″ 300 | 360 | 474 | 310 | 70 | 16 | 300 | 20 | 360 | 432 |
| 14″ 350 | 440 | 530 | 365 | 75 | 18 | 350 | 22 | 360 | 476 |
| 16″ 350 | 488 | 590 | 410 | 90 | 18 | 400 | 25 | 450 | 540 |
| S. N. | Parts Name | Material | Qty |
|---|---|---|---|
| 01 | Body | WCB/SS 304/316 | 01 |
| 02 | Gate | SS 304 | 01 |
| 03 | Gland Packing | Imp. Asbestos | 01 |
| 04 | Gland Busher | S.G.I. | 01 |
| 05 | Spindle | SS 304 | 01 |
| 06 | York | M.S./S.S. | 01 |
| 07 | Sleeve | G.M. | 01 |
| 08 | Block | CI | 01 |
| 09 | Wheel | SGI | 01 |
| 10 | Fastners | MS | 01 |
Application
Note:
(1) All Dimension are in mm
(2) Tolerance ± 3 mm
