Description
(THREE WAY DESIGN)

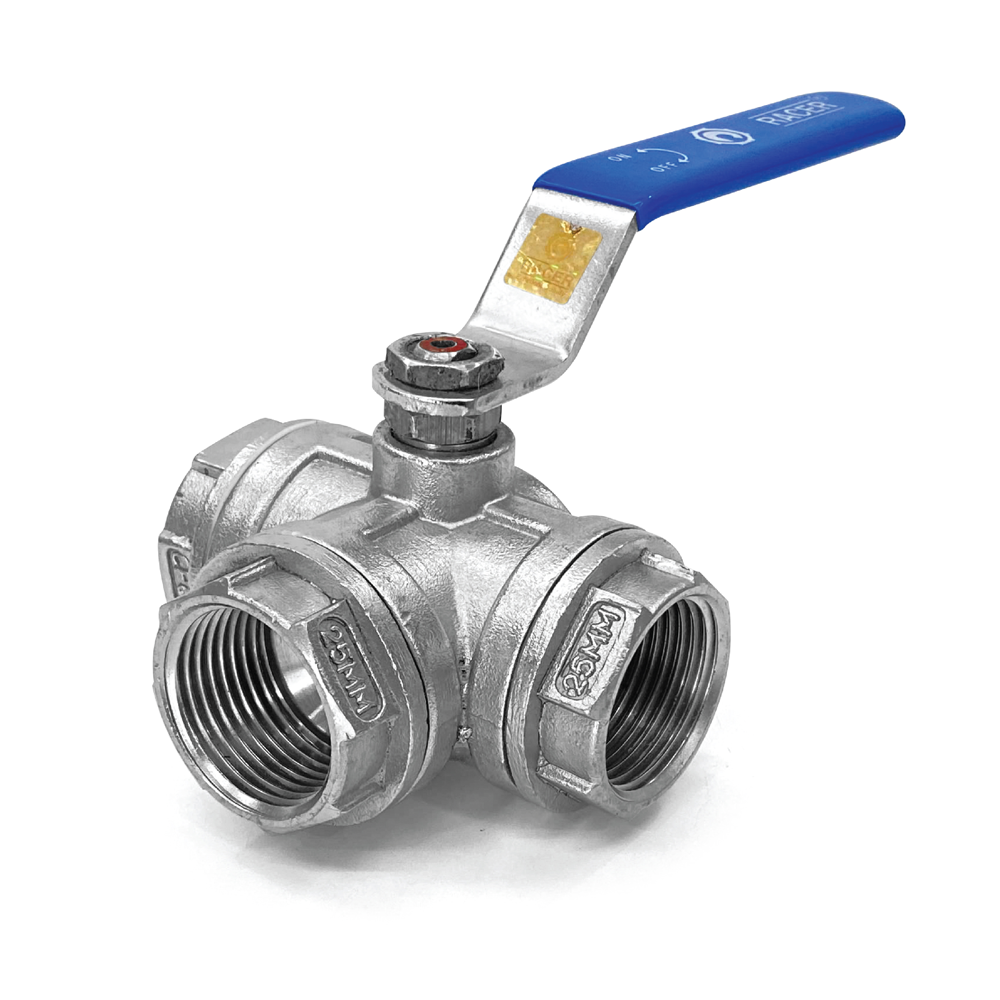

| I.C. Three Way Ball Valve S/E | ||||
|---|---|---|---|---|
| Size | A | B | L | |
| Inch | M.M. | |||
| 1/2″ | 15 | 69 | 49 | 115 |
| 3/4″ | 20 | 80 | 53 | 135 |
| 1″ | 25 | 89 | 57 | 135 |
| 1.1/2″ | 40 | 140 | 86 | 170 |
| 2″ | 50 | 152 | 93 | 170 |
| PRIMARY SERVICE RATING & TEST PRESSURE | |||
|---|---|---|---|
| Class | Hydro Test Pressure | Max. Temp | |
| Body | Seat | ||
| 150 | 425 PSI | 300 PSI | 180°C |
| Air Test-Seat 80 PSI±PSI | |||
| S. N. | Parts Name | Material | Qty |
|---|---|---|---|
| 01 | Body | ASTM A 351 Gr. CF8/CF8M/CF3/CF3M | 1 |
| 02 | Body Connecter | ASTM A 351 Gr. CF8/CF8M/CF3/CF3M | 3 |
| 03 | Ball | AISI 304/316/304L/316L | 1 |
| 04 | Stem | AISI 304/316/304L/316L | 1 |
| 05 | Gland Nut | AISI 202/304/316/304L/316L | 1 |
| 06 | Gland Bush | AISI 202/304/316/304L/316L | 1 |
| 07 | Seat Ring | PTFE/GFT | 4 |
| 08 | Body Seal | PTFE/GFT | 3 |
| 09 | Steam Seal | PTFE/GFT | 2 |
| 10 | Lock Nut | AISI 304/316/304L/316L | 2 |
| 11 | Lever | M.S./S.S. 202/304/316 | 1 |
Application
Note:
(1) All Dimension are in mm
(2) Tolerance ± 3 mm
(3) Also available in ‘T’ Port & ‘L’ Port Ball Design
