Description

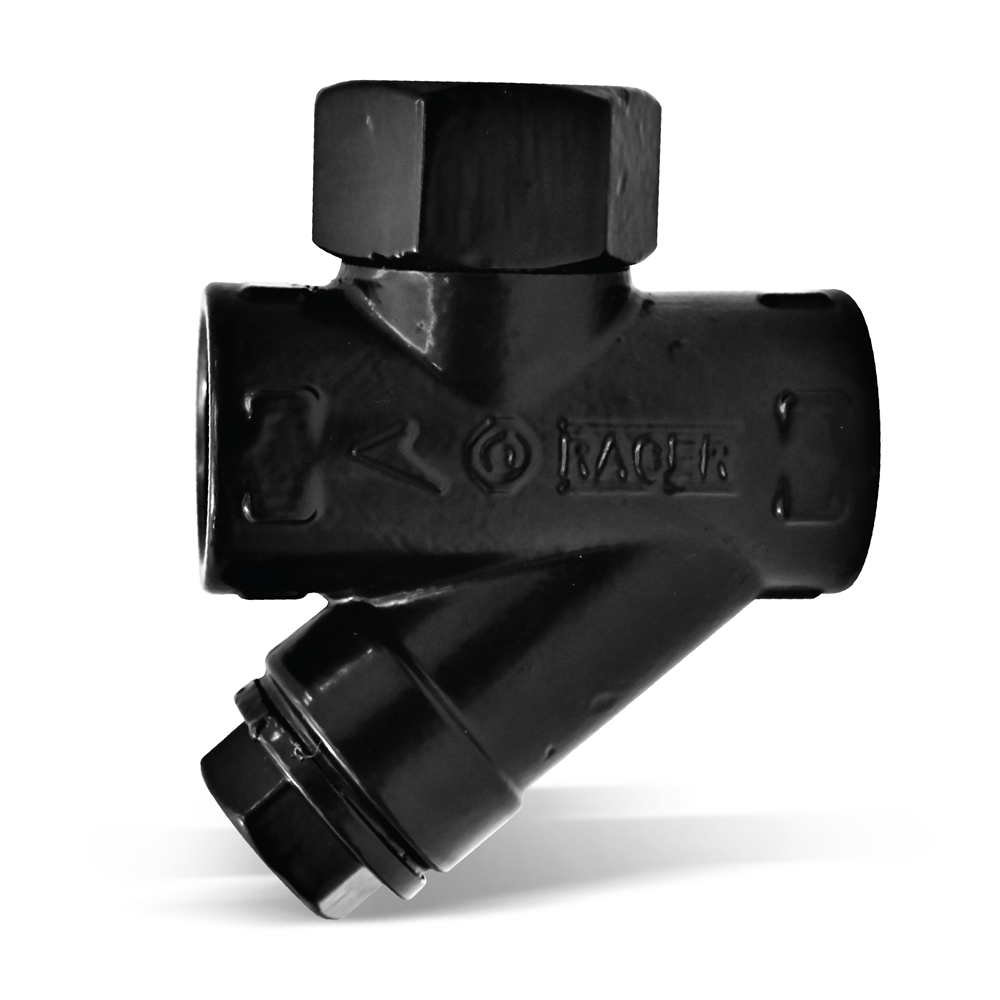

(Steam Traps)
| STEAM TRAP | |||
|---|---|---|---|
| Size | A | THRDS.(BSP\NPT) | |
| Inch | M.M. | ||
| 1/2″ | 15 | 79 | 1/2″ |
| 3/4″ | 20 | 79 | 3/4″ |
| 1″ | 25 | 88 | 1″ |
| S. N. | Parts Name | Material | Qty |
|---|---|---|---|
| 01 | Body | AISI 410 | 1 |
| 02 | Cap | AISI 410 | 1 |
| 03 | Body Cover | AISI 410 | 1 |
| 04 | Screen | SS | 1 |
| 05 | Disc | AISI 410 | 1 |
Application
Note:
(1) All Dimension are in mm
(2) Tolerance ± 3 mm
