Description

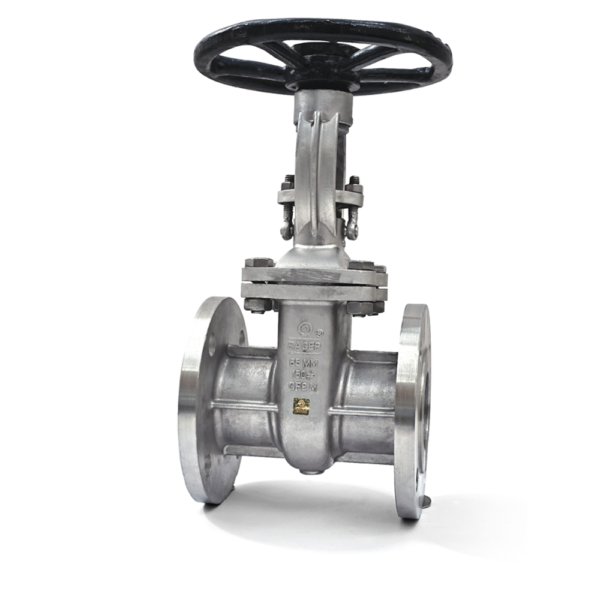

(GATE VALVES)
| GATE VALVE F/E 150# | |||||||
|---|---|---|---|---|---|---|---|
| Size | A | B | ØC | ØD | ØM | N | PCD |
| 25 | 127 | 11.1 | 51 | 108 | 16 | 4 | 79.2 |
| 40 | 165 | 14.2 | 73 | 127 | 16 | 4 | 98.5 |
| 50 | 178 | 15.7 | 92 | 152 | 19 | 4 | 120.5 |
| 65 | 190 | 17.5 | 105 | 178 | 19 | 4 | 140 |
| 80 | 203 | 19 | 127 | 190 | 19 | 4 | 152 |
| 100 | 229 | 24 | 157 | 229 | 19 | 8 | 190.5 |
| 125 | 254 | 24 | 186 | 254 | 22 | 8 | 216 |
| 150 | 267 | 25.4 | 216 | 279 | 22 | 8 | 241 |
| 200 | 292 | 28.4 | 270 | 343 | 22 | 8 | 298 |
| 250 | 330 | 30 | 324 | 406 | 25 | 12 | 362 |
| 300 | 356 | 31.5 | 381 | 483 | 25 | 12 | 432 |
| PRIMARY SERVICE RATING & TEST PRESSURE | |||||
|---|---|---|---|---|---|
| Class | Hydro Test Pressure | Max. Temp | |||
| Body | Seat | ||||
| 150 | 425 PSI | 300 PSI | 180°C | ||
| Air Test – Seat 80 PSI ± PSI | |||||
| S. N. | Parts Name | Material | Qty |
|---|---|---|---|
| 01 | Body | CF8/CF8M/C. I./C. S. | 1 |
| 02 | Bonnet | CF8/CF8M/C. I./C. S. | 1 |
| 03 | Wedge | CF8/CF8M/AISI 410 (13%CR) | 1 |
| 04 | Seat Ring | CF8/CF8M/AISI 410 (13%CR) | 1 |
| 05 | Stem | CF8/CF8M/AISI 410 (13%CR) | 1 |
| 06 | Gland | S.S./C.S. | 1 |
| 07 | Yoke Sleeve | Caste Steel/Cast Iron | 1 |
| 08 | Bonnet Bush | SS/AISI 410 | 1 |
| 09 | Gasket | Spiral Wound Metalic | 1 |
| 10 | Gland Packing | Graphoil | – |
| 11 | Bonnet Stud & Nut | S.S./M.S. | – |
| 12 | Eye Bolt & Nut | S.S>/M.S. | 2 |
| 13 | Hand Wheel | Cast Iron /S.G. Iron | 1 |
Application
Note:
(1) All Dimension are in mm
(2) Tolerance ± 3 mm
